Touareg Dimensions
Touareg dimensions
Here you’ll find all the dimensions for both the exterior and interior of the Touareg. Subsequent trims with differing dimensions are shown individually. Scroll down to find out more.
Exterior dimensions
Premium SUV bursting with character
mm | |
|---|---|

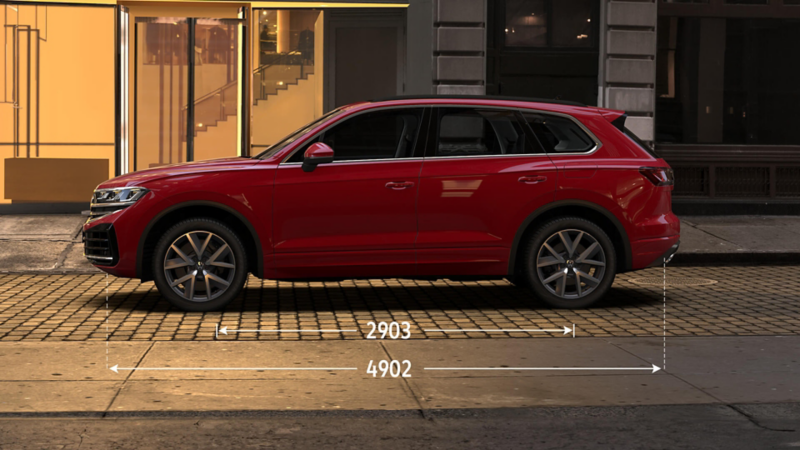

Length | 4902 |
Wheelbase | 2903 |
Turning circle | 12200 |

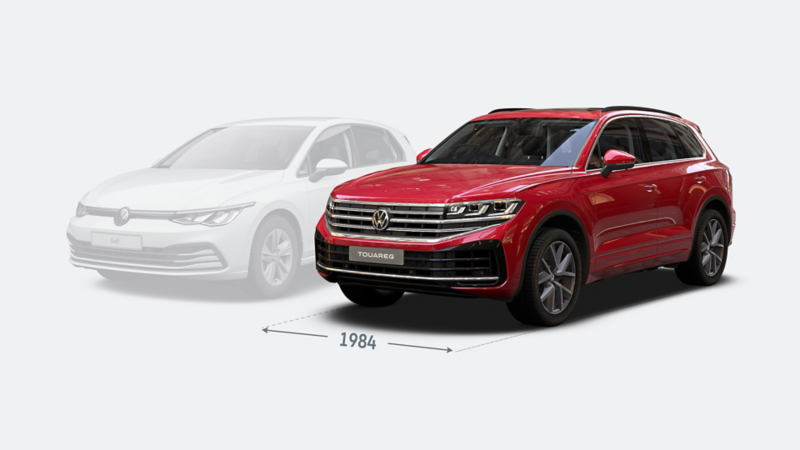

Width - excluding door mirrors | 1984 |

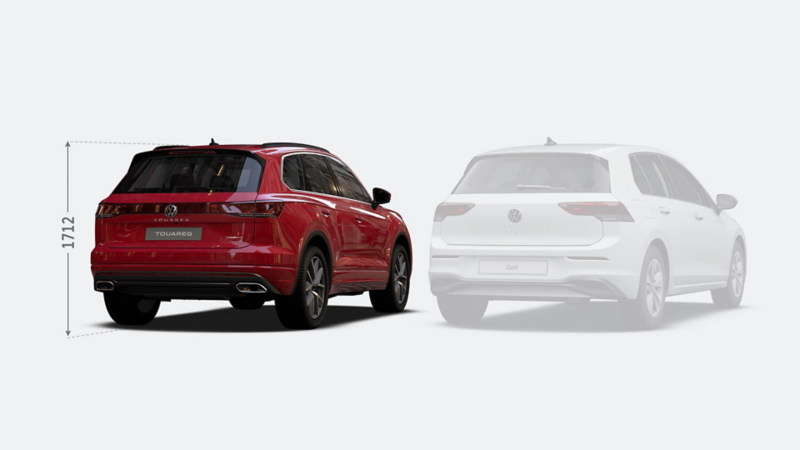

Height | 1712 |
Length
mm
4902
Wheelbase
Turning circle
Width - excluding door mirrors
Height
Interior dimensions
Plenty of space
mm | |
|---|---|
Interior width - front | 1584 |
Interior width - rear | 1547 |
Width - excluding door mirrors | 1984 |
Boot length, with rear seats upright | 1037 |
Boot length, with rear seats folded | 1910 |

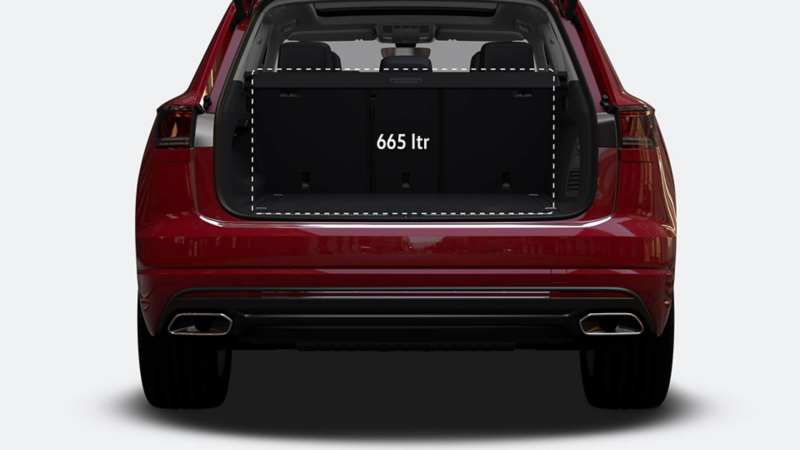

Boot volume | 665 ltr |

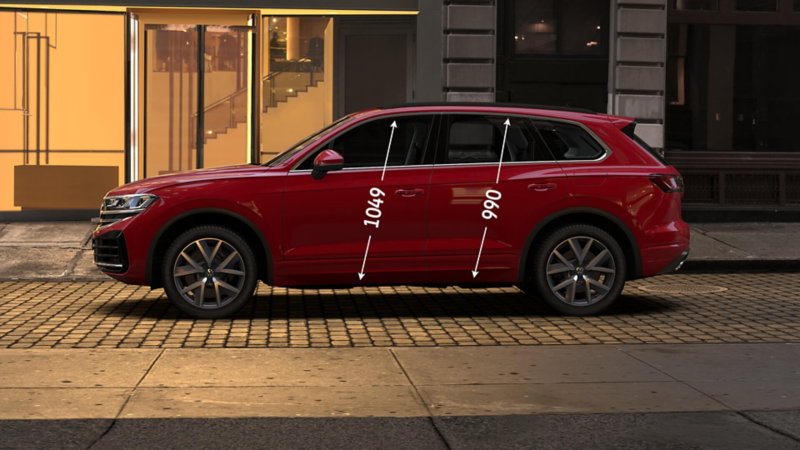

Effective headroom maximum - front (with sunroof) | 1049 |
Effective headroom maximum - rear (with sunroof) | 990 |
Interior width - front
mm
1584
Interior width - rear
Width - excluding door mirrors
Boot length, with rear seats upright
Boot length, with rear seats folded
Boot volume
Effective headroom maximum - front (with sunroof)
Effective headroom maximum - rear (with sunroof)
Touareg Black Edition dimensions
Exterior dimensions
An exterior that excels
mm | |
|---|---|

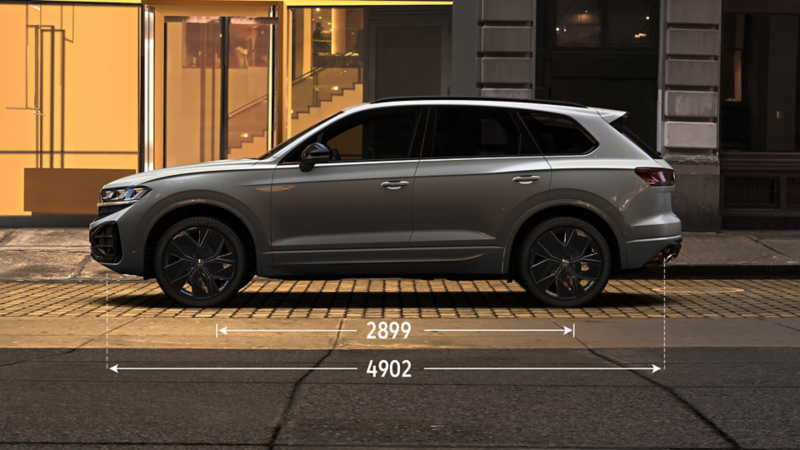

Length | 4902 |
Wheelbase | 2899 |
Turning circle | 12400 |

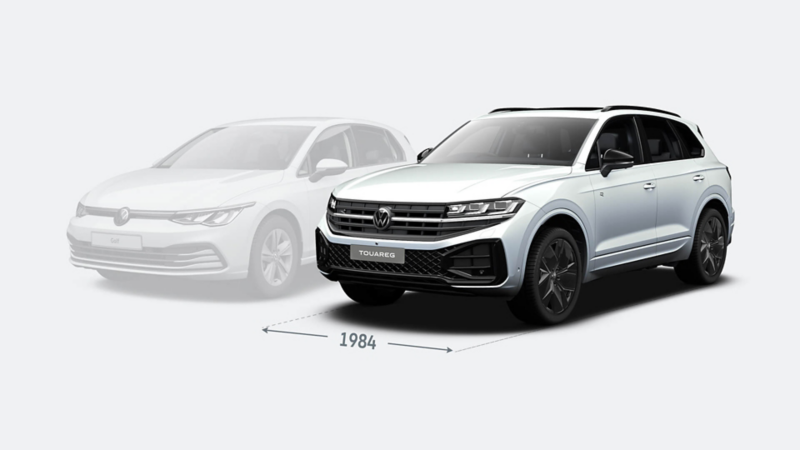

Width - excluding door mirrors | 1984 |

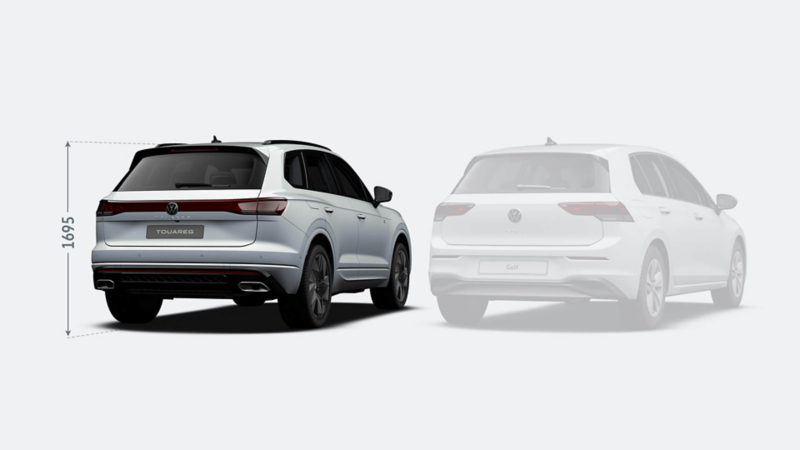

Height | 1695 |
Length
mm
4902
Wheelbase
Turning circle
Width - excluding door mirrors
Height
Interior dimensions
Plenty of space
mm | |
|---|---|

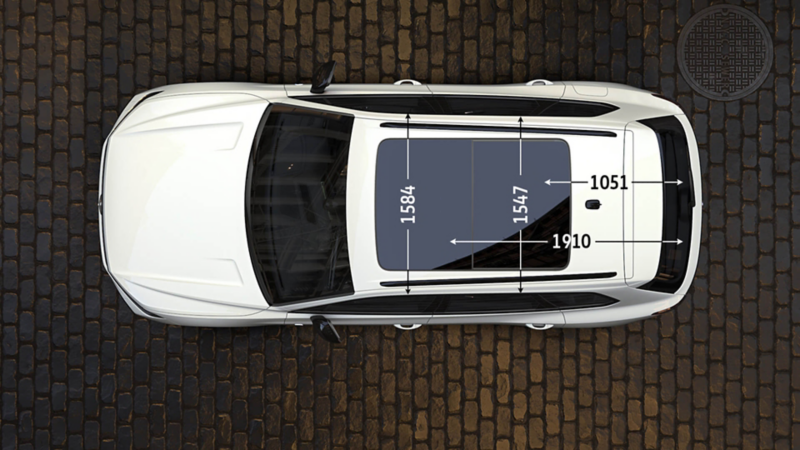

Interior width - front | 1584 |
Interior width - rear | 1547 |
Boot length, with rear seats upright | 1051 |
Boot length, with rear seats folded | 1910 |

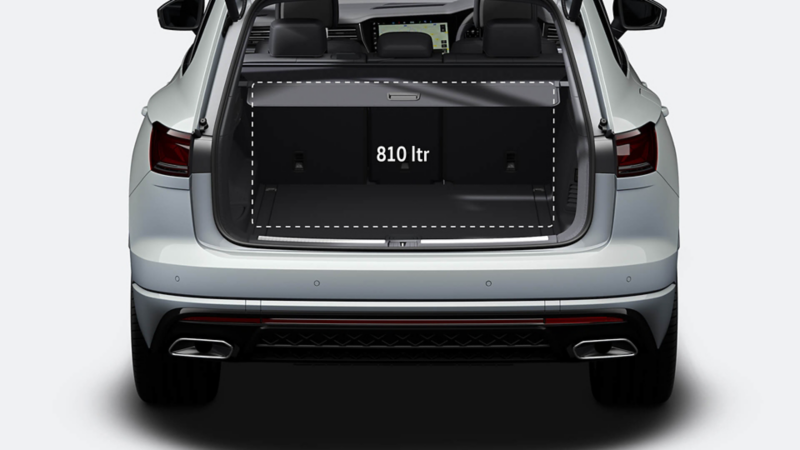

Boot volume | 810 ltr |

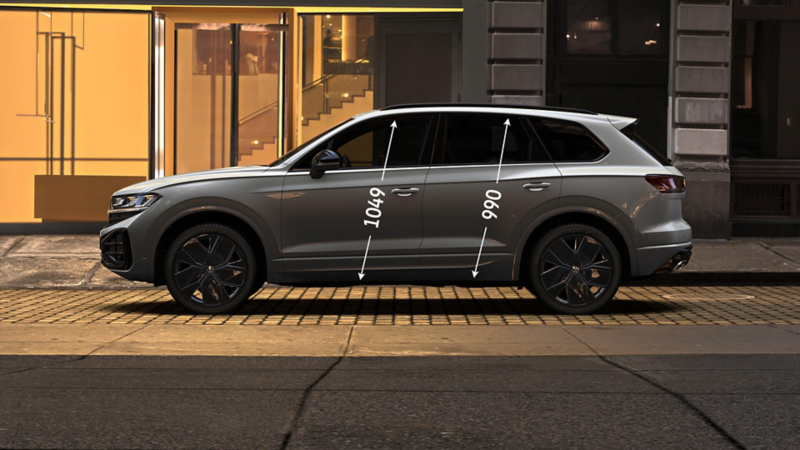

Effective headroom maximum - front (with sunroof) | 1049 |
Effective headroom maximum - rear (with sunroof) | 990 |
Interior width - front
mm
1584
Interior width - rear
Boot length, with rear seats upright
Boot length, with rear seats folded
Boot volume
Effective headroom maximum - front (with sunroof)
Effective headroom maximum - rear (with sunroof)
Touareg R dimensions
Exterior dimensions
Bold lines, big presence
mm | |
|---|---|

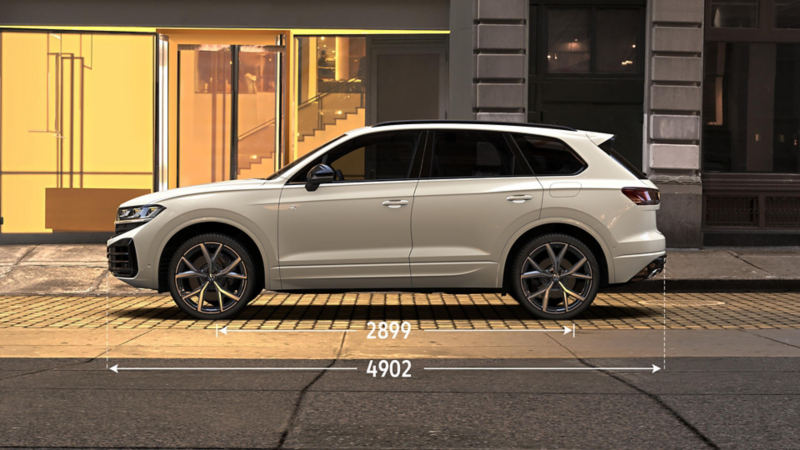

Length | 4902 |
Wheelbase | 2899 |
Turning circle | 12400 |

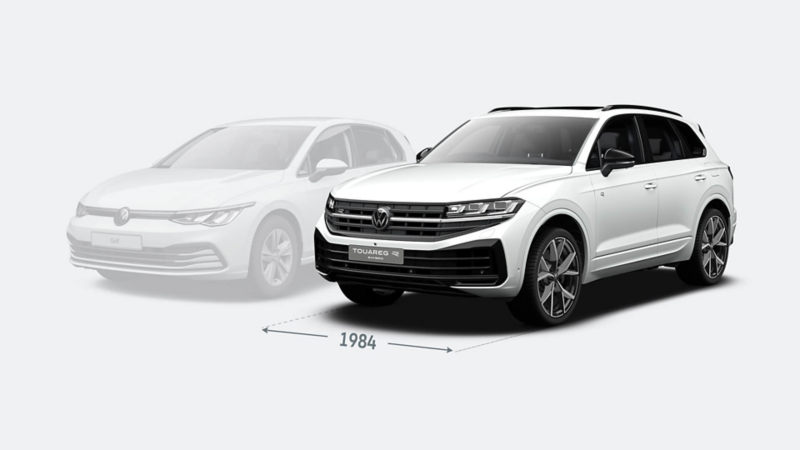

Width - excluding door mirrors | 1984 |

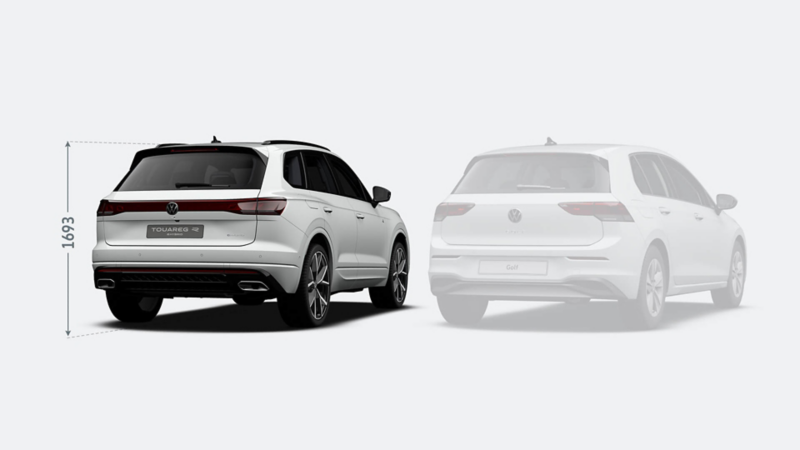

Height | 1693 |
Length
mm
4902
Wheelbase
Turning circle
Width - excluding door mirrors
Height
Interior dimensions
100% electric boot lid
mm | |
|---|---|

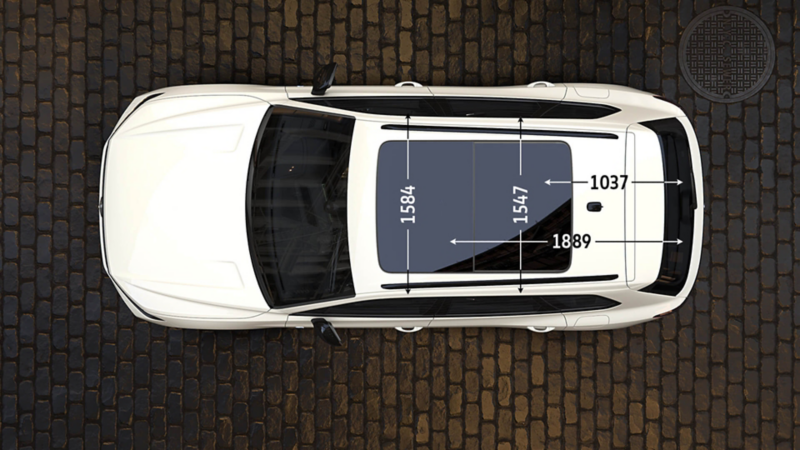

Interior width - front | 1584 |
Interior width - rear | 1547 |
Boot length, with rear seats upright | 1037 |
Boot length, with rear seats folded | 1889 |

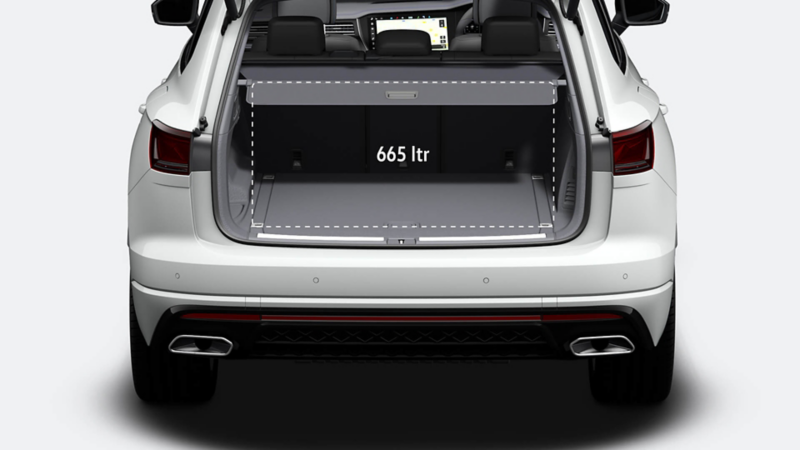

Boot volume | 665 |

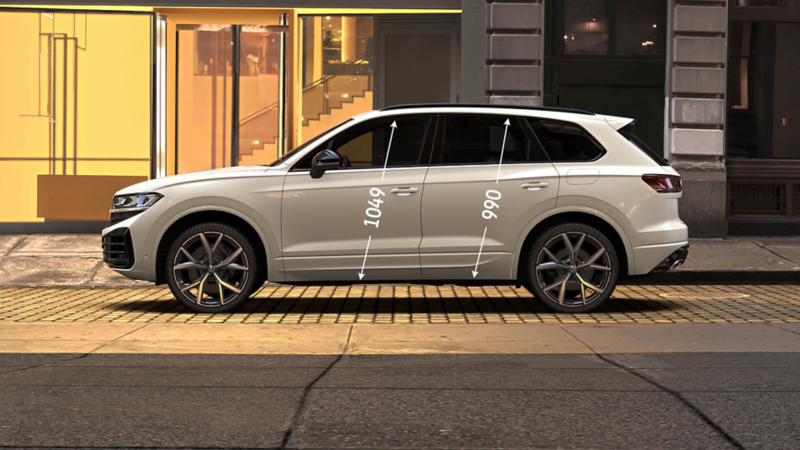

Effective headroom maximum - front (with sunroof) | 1049 |
Effective headroom maximum - rear (with sunroof) | 990 |
Interior width - front
mm
1584
Interior width - rear
Boot length, with rear seats upright
Boot length, with rear seats folded
Boot volume
Effective headroom maximum - front (with sunroof)
Effective headroom maximum - rear (with sunroof)
